Product Datasheet Search Results:
2 Pages, 134 KB, Original- 2N5927
- Diode Transistor Co., Inc.
- Transistor Short Form Data

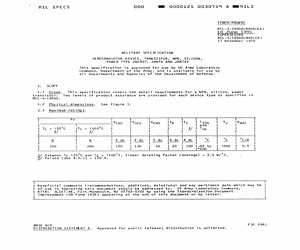

15 Pages, 479 KB, Scan- 2N5927+JAN
- Defense Energy Support Center
- NPN Silicon Power Transistor
15 Pages, 479 KB, Scan- 2N5927+JANTX
- Defense Energy Support Center
- NPN Silicon Power Transistor
1 Pages, 69 KB, Scan- 2N5927
- Silicon Transistor Corp.
- Industrial Grade Power Transistors

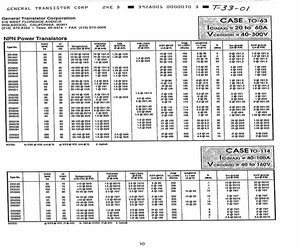

2 Pages, 184 KB, Scan- 2N5927
- General Transistor Corp.
- NPN Power Transistors
1 Pages, 38 KB, Scan- 2N5927
- Microsemi Corp.
- 100 A, 120 V, NPN, Si, POWER TRANSISTOR, TO-114
1 Pages, 661 KB, Scan- 2N5927
- Powertech, Inc.
- 100 A, 120 V, NPN, Si, POWER TRANSISTOR, TO-114
Product Details Search Results:
Dla.mil/2N5927+JAN
{"t(s) Max. (s) Storage time.":"4.0u","V(CE)sat Max.(V)":"2.0","Absolute Max. Power Diss. (W)":"200","V(BR)CBO (V)":"150","h(FE) Min. Static Current Gain":"10","I(C) Abs.(A) Collector Current":"100","h(FE) Max. Current gain.":"40","@V(CBO) (V) (Test Condition)":"150","I(CBO) Max. (A)":"2.0m","Package":"TO-114","f(T) Min. (Hz) Transition Freq":"500k","@V(CE) (V) (Test Condition)":"10","@I(B) (A) (Test Condition)":"20","V(BR)CEO (V)":"120","Military":"Y","Mil Number":"JAN2N5927","@I(C) (A) (Test Condition)":"...
1093 Bytes - 06:54:14, 05 August 2026
Dla.mil/2N5927+JANTX
{"t(s) Max. (s) Storage time.":"4.0u","V(CE)sat Max.(V)":"2.0","Absolute Max. Power Diss. (W)":"200","V(BR)CBO (V)":"150","h(FE) Min. Static Current Gain":"10","I(C) Abs.(A) Collector Current":"100","h(FE) Max. Current gain.":"40","@V(CBO) (V) (Test Condition)":"150","I(CBO) Max. (A)":"2.0m","Package":"TO-114","f(T) Min. (Hz) Transition Freq":"500k","@V(CE) (V) (Test Condition)":"10","@I(B) (A) (Test Condition)":"20","V(BR)CEO (V)":"120","Military":"Y","Mil Number":"JANTX2N5927","@I(C) (A) (Test Condition)"...
1105 Bytes - 06:54:14, 05 August 2026
Microsemi.com/2N5927
{"Status":"ACTIVE","Package Body Material":"METAL","Transistor Polarity":"NPN","Terminal Form":"SOLDER LUG","Number of Terminals":"3","DC Current Gain-Min (hFE)":"10","Collector-emitter Voltage-Max":"120 V","Transistor Element Material":"SILICON","Transition Frequency-Nom (fT)":"1 MHz","Collector Current-Max (IC)":"100 A","Case Connection":"COLLECTOR","Terminal Position":"UPPER","Transistor Type":"GENERAL PURPOSE POWER","Package Shape":"ROUND","Configuration":"SINGLE","Package Style":"POST/STUD MOUNT","Numb...
1195 Bytes - 06:54:14, 05 August 2026
N_a/2N5927
{"Category":"NPN Transistor, Transistor","Amps":"100A","MHz":">5 MHz","Volts":"150V"}...
516 Bytes - 06:54:14, 05 August 2026
Power-tech.com/2N5927
{"Status":"ACTIVE","Package Body Material":"METAL","Mfr Package Description":"TO-114, 4 PIN","Terminal Form":"UNSPECIFIED","Package Style":"POST/STUD MOUNT","DC Current Gain-Min (hFE)":"5","Collector-emitter Voltage-Max":"120 V","Transistor Application":"SWITCHING","Transition Frequency-Nom (fT)":"1 MHz","Collector Current-Max (IC)":"100 A","Terminal Position":"UPPER","Transistor Polarity":"NPN","Package Shape":"ROUND","Transistor Element Material":"SILICON","Transistor Type":"GENERAL PURPOSE POWER","Number...
1197 Bytes - 06:54:14, 05 August 2026
